    DIY led fixture

    Advertisements
    Fresh n Marine aQuarium Banner

    Advertise here

    Advertise here
    I bought these on ebay for $55sgd so i decided to make my own light fixture.


  2. #2
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

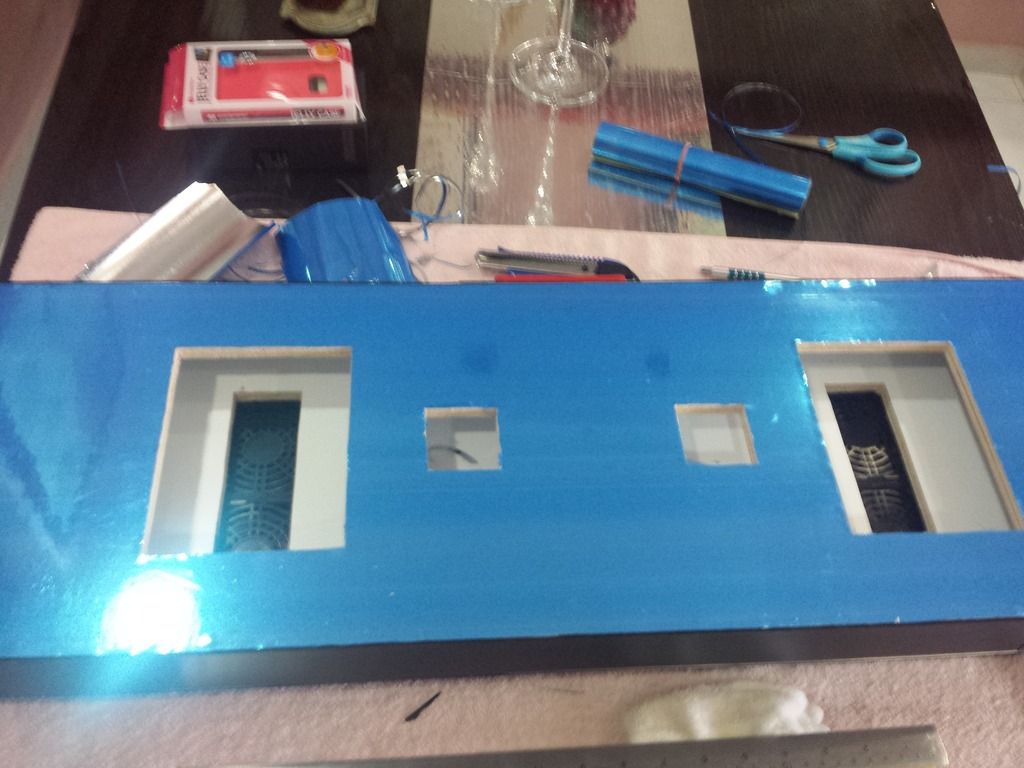

    Bought a couple of plywood and cut it to my tank specification.



    holes are cut for cooling fans.

  3. #3
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Here is how it look bare..




  4. #4
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Bought two set of remote dimmers,quite costly,online is way cheaper but i cant wait for 2 weeks shipping.


  5. #5
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Cover it with plastic board.left side, it have 2 3pin socket and on the right side are the 2 dimmers
    and bottom i paste mirrior sticker that i have left over from another project.






  6. #6
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Wiring in the led box..


  7. #7
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

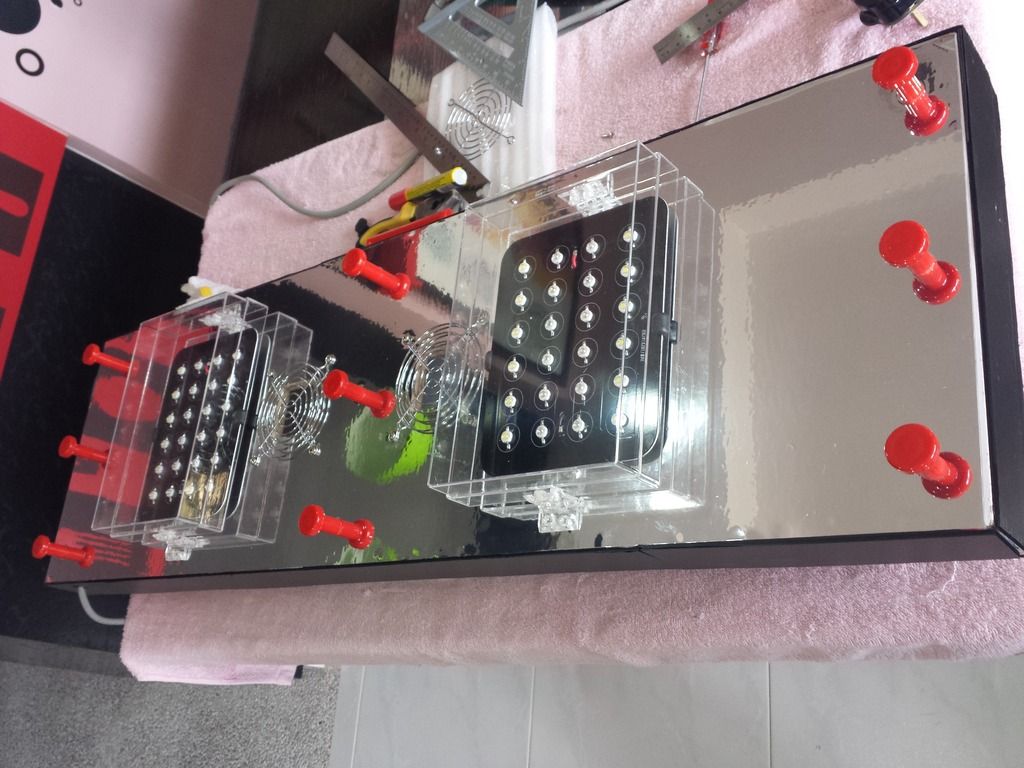

    i mount the led with a rubber grip at the side and I used Daiso acrylic cover for led covers




  8. #8
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    here is the remote


  9. #9
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    here is how it look finished.












  10. #10
    Join Date
    Nov 2013
    Posts
    200
    Feedback Score
    0
    Images
    2

    Re: DIY led fixture

    Wow wow wow! Impressive!

    Sent from my HUAWEI KII-L22 using Tapatalk

  11. #11
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Quote Originally Posted by gimhchng View Post
    Wow wow wow! Impressive!
    Thanks

  12. #12
    Join Date
    Jun 2014
    Location
    West Ender
    Posts
    504
    Feedback Score
    5 (100%)
    Country
    Singapore

    Re: DIY led fixture

    Excellent DIY!!! Totally impressed

  13. #13
    Join Date
    Feb 2004
    Location
    Tampines
    Posts
    54
    Feedback Score
    2 (100%)
    Country
    Singapore

    Re: DIY led fixture

    awesome !!!! a lot of work done .. not easy.
    JS

  14. #14
    Join Date
    Nov 2002
    Location
    Singapore
    Posts
    1,665
    Feedback Score
    1 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Nice LEDS!!
    the red handles are too eyes catching... maybe a knob looks nicer?
    can share the website that you bought the LEDs?

  15. #15
    Join Date
    Jun 2014
    Location
    Simei
    Posts
    173
    Feedback Score
    6 (100%)
    Country
    Singapore

    Re: DIY led fixture

    A lot of buttons to press! I like! Especially the dimmer control on the right

  16. #16
    Join Date
    Jan 2011
    Location
    Tampines
    Posts
    1,727
    Feedback Score
    47 (100%)
    Images
    1
    Country
    Singapore

    Re: DIY led fixture

    Quote Originally Posted by fireblade View Post
    Nice LEDS!!
    the red handles are too eyes catching... maybe a knob looks nicer?
    can share the website that you bought the LEDs?
    Here it is

    http://www.ebay.com.sg/itm/391216610...%3AMEBIDX%3AIT
